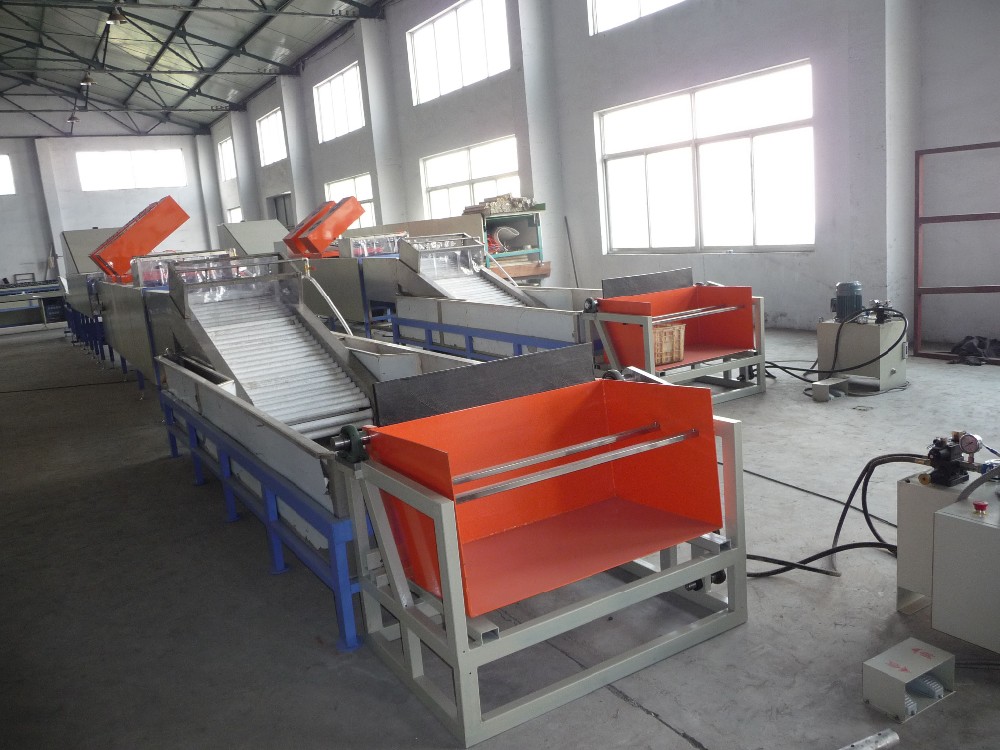

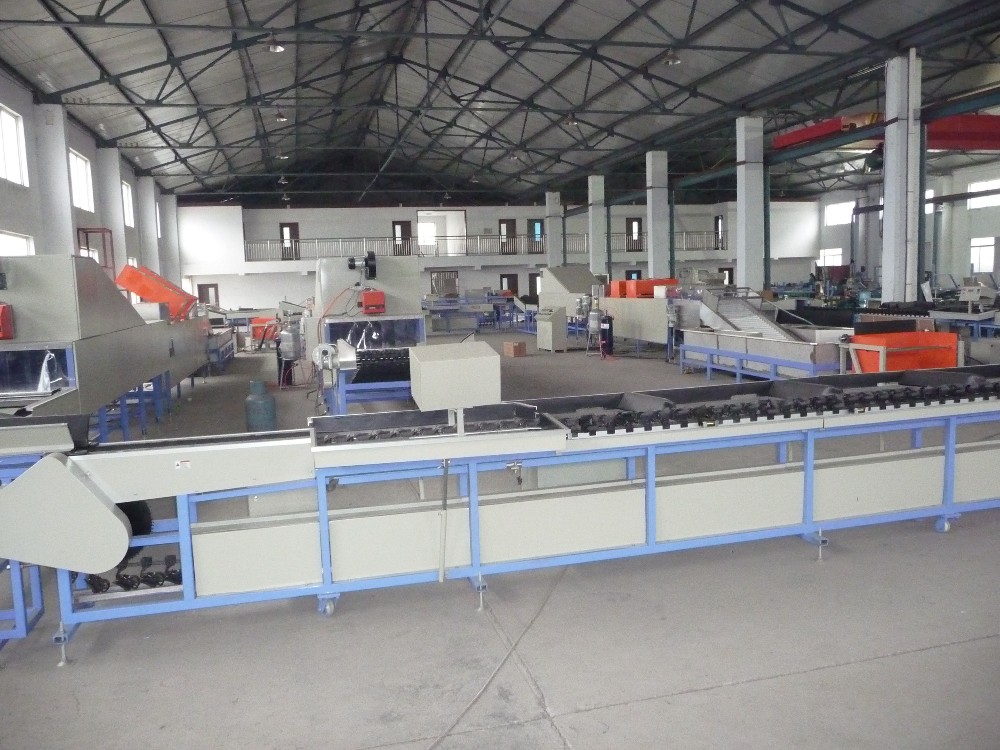

This production line can washing waxing drying grading round fruits and vegetables, like mango, citrus, orange, apple, lemon, tomato, kiwi fruit, passion fruit, dragon fruit etc. The line can make the fruit appearance look bright, and improve the fruit price for sale. At the same time,after waxing, a layer of wax membrane will be coated on the fruit to keep the fruit away from bacteria and elongate the fruit storage time. And the sorting machine is efficient and precise. It’s widely used for grading apples, pears, persimmons, onions, lemons, mangos, pomelo, jujube, and other round fruits. It is controlled by PLC,and is highly intelligent. Weighing, logic calculation, counting are integrated. Tetrafluoroethylene is covered onto the working surface to keep the machine running stably with low noise and increase the shelf life of the machine. The operation and maintenance of the machine is easy and laborsaving. And, the efficiency of it is about 1.5 times of that of the traditional machine.
SPECIFICATIONS FOR FRUIT WASHING WAXING DRYING GRADING LINE | |||
Capacity | Kg | 500 | |
Hydraulic feeding fruit system | Dimension | m | will custom-made it according to customer’s box size |
Position | — | Can be water tank two sides or front | |
Capacity | kg/h | 3000-5000 | |
Washing waxing part | Dimension | m | 15*1.5*1.8 |
Rated Power | KW | 34 | |
Capacity | kg/h | 20000pcs/h or custom-made | |
Sorting part | Dimension | m | 12*1.2*1.5 |
Rated Power | KW | 2.2 |
1) It’s widely used for grading apples, pears, persimmons,onions,lemons,mangos,pomelo,jujube,and other round fruits.
2) It is controlled by PLC, and is highly intelligent. Weighing, logic calculation, counting are integrated.
3) Tetrafluoroethylene is covered onto the working surface to keep the machine running stably with low noise and increase the shelf life of the machine. The operation and maintenance of the machien is easy and laborsaving.

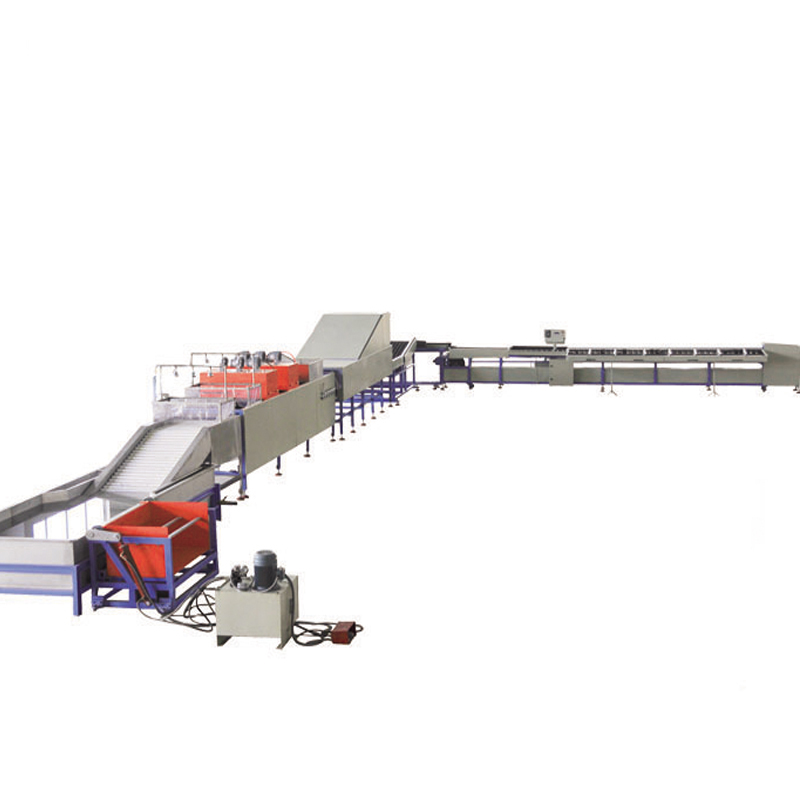

4) The whole line shape can be designed to “L” shape, “I” shape, “U” shape according to customer’s factory layout.
5) The hot air drying wax part can be deisign to gas burning heating or electric heating.
Machine Parts 1

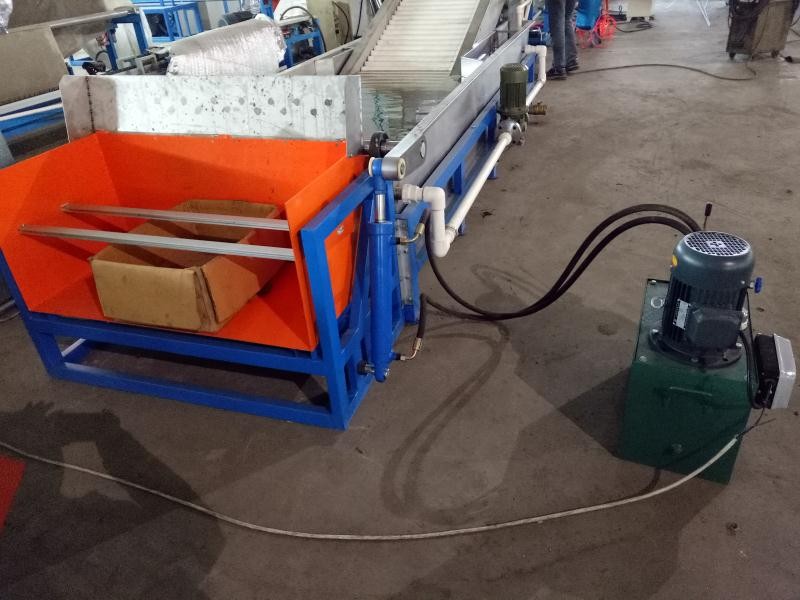

Name: Hydraulic feeding system
Size: This part wil custom-made according to customers’ box size.
NOTE: This part is not included in the machine price, if need this part, need to special custom-made.
Machine Parts 2

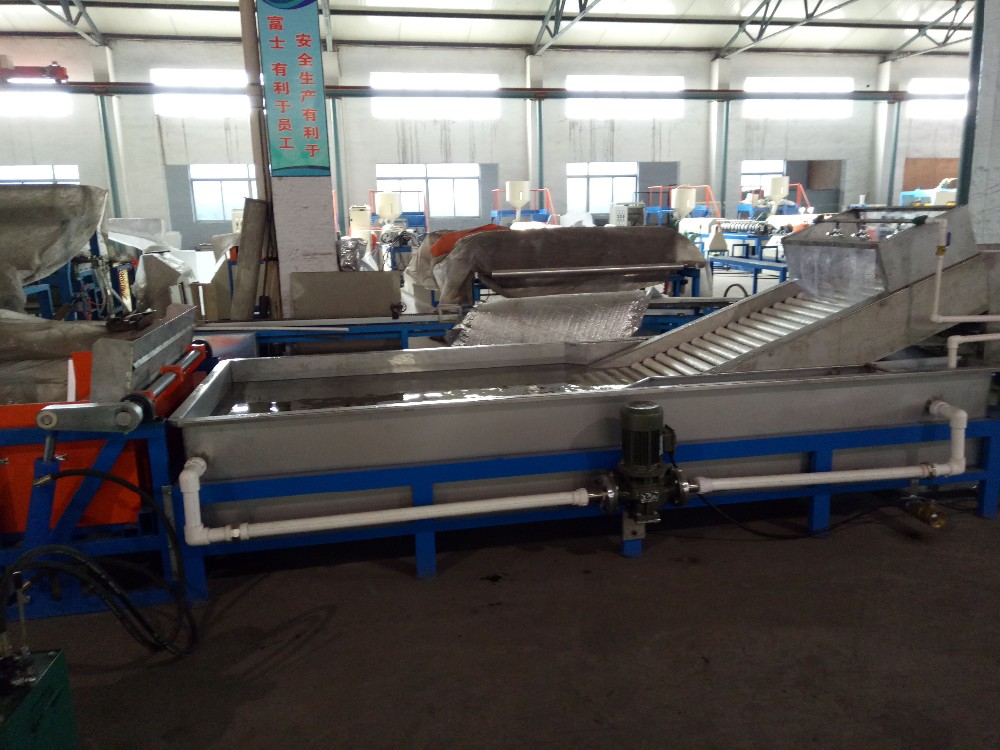

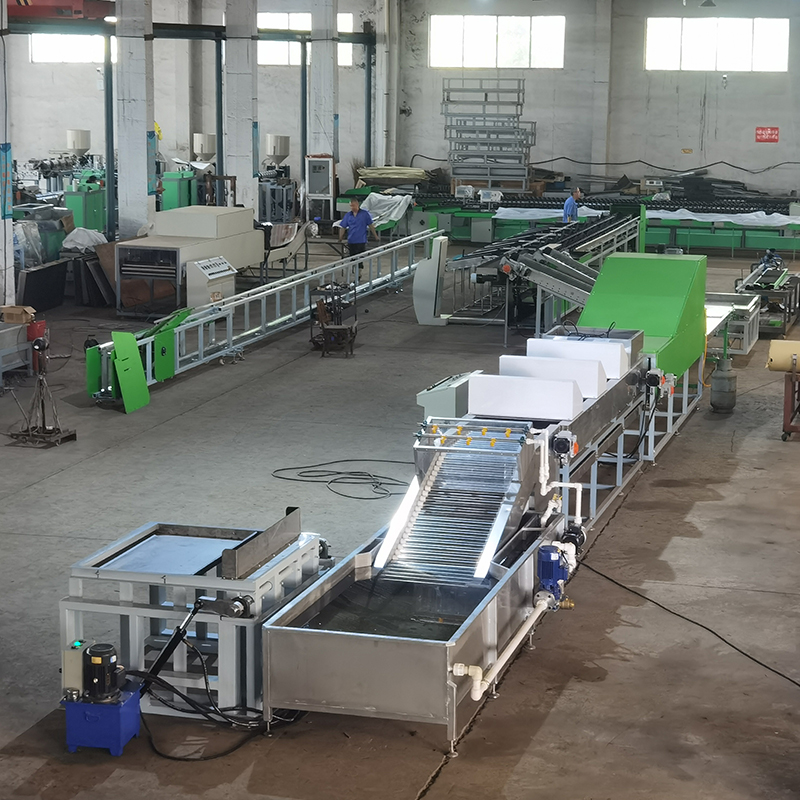

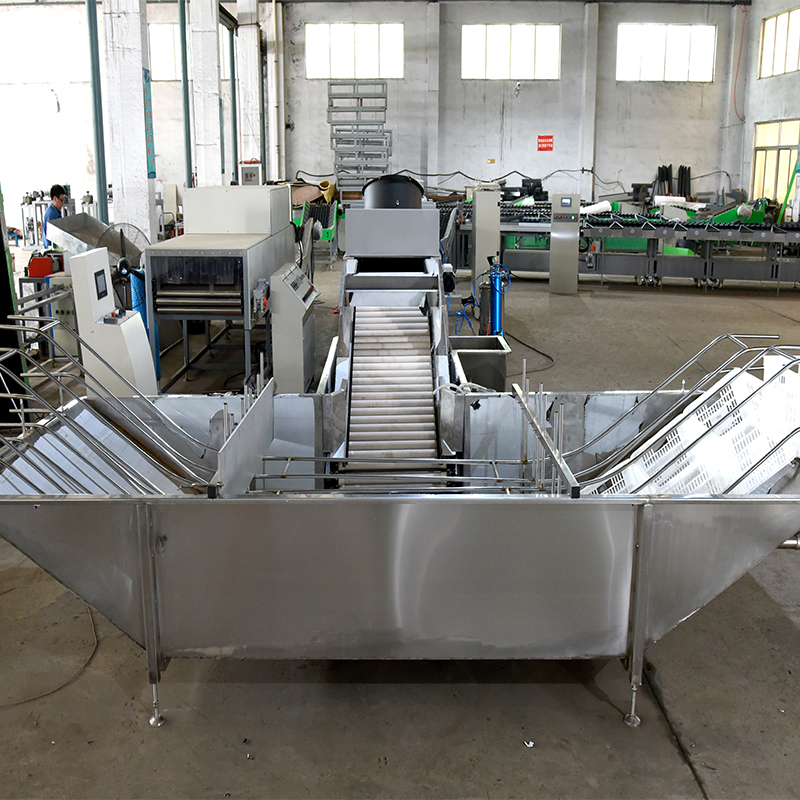

Name: Water tank and lifter
Structure: Installed with stainless steel water tank with filter for recycling water. High-pressure water pump is used to wash the fruits, like surf bath, to make sure the fruit is clean and orderly upgrade.
Machine Parts 3
Name: Brushing and air fans drying, waxing
Structure: brush roller, spray-head, timer, wax nozzle, wax tank, filter, air blower. The use of rotation brush rollers and secondary spray rinse the fruit surface,spray at the sixth brush roller to eliminate attachment. During the conveying process, the brushes will clean out the water on the fruit, and they are also used to brighten the fruit. Six cooling fans are installed in the middle of the brushes for drying the fruits. During the second half of conveyance, timer is used to control electromagnetic wax nozzle., where edible wax is sprayed. The interval time and wax spraying time can be set freely. After spraying, the rotated brush rollers will make the wax sprayed homogeneously spread on the fruit.
Machine Parts 4

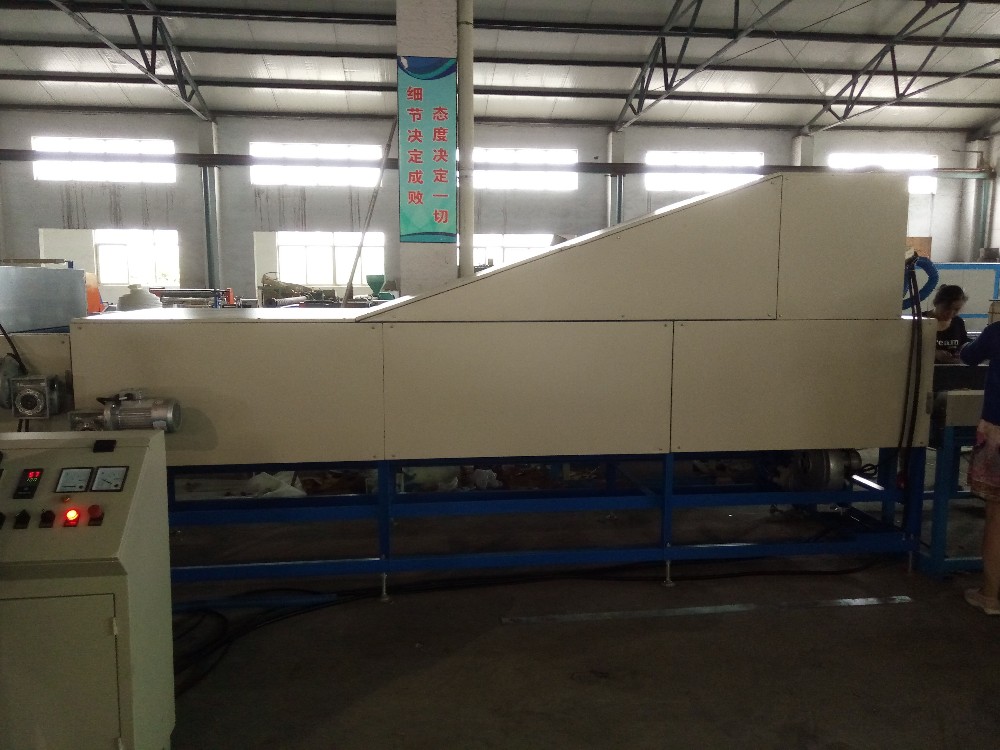

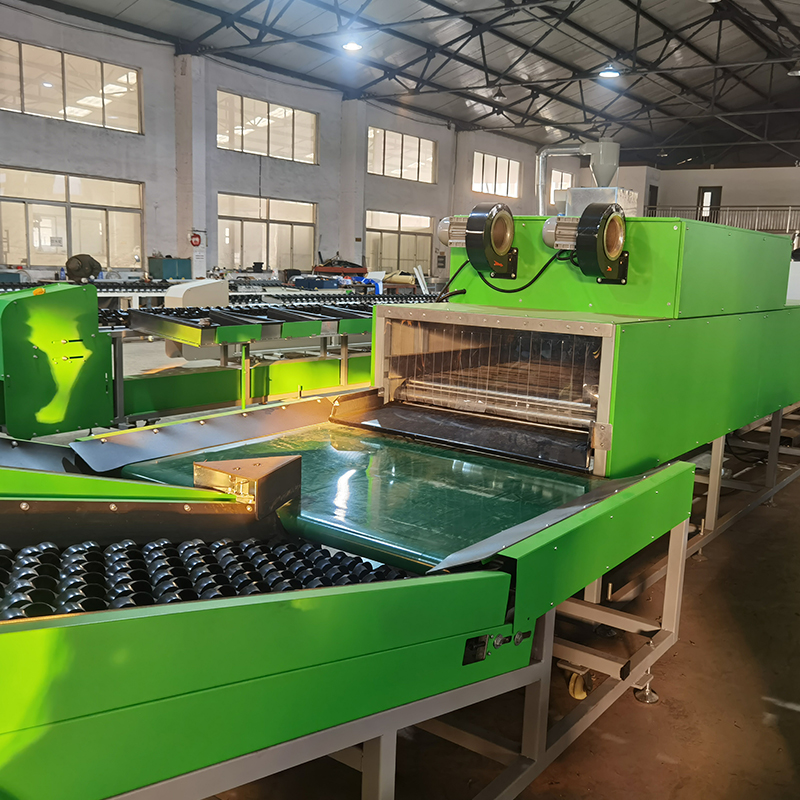

Name: Hot air drying wax part
Structure:Heated by natural gas burner/electric heating and intelligent temperature controller is installed. The temperature controller can be set freely and automatic temperature control.The temperature in the drying tunnel is from low to high. and the wind in the tunnel is closed inner loop. Centrifugal blower to achieve the internal hot and cold air convection.Transport the waxed fruit in the drying box, and let the surface water evaporated. The drying process could improve the brightness of the fruit.
Machine Parts 5

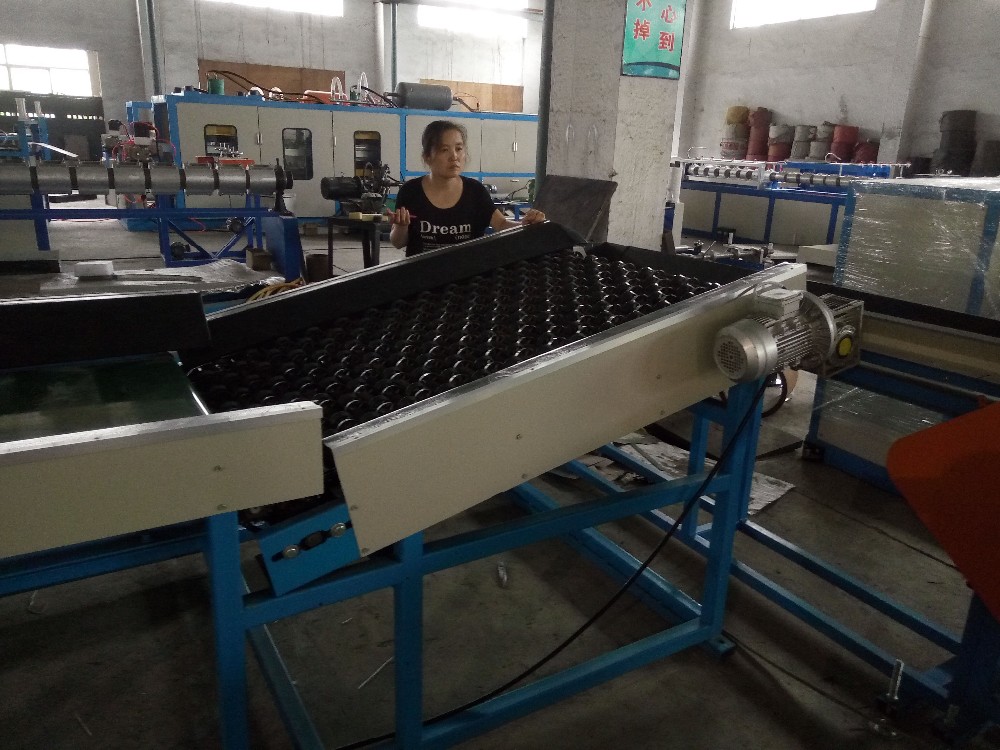

Name: Automatic loader for sorting machine
Structure: Use conveyor receive fruit after hot air drying process, and lift fruit to a higher level, i.e. conveyor of sorting machine automaticly.
Machine Parts 6

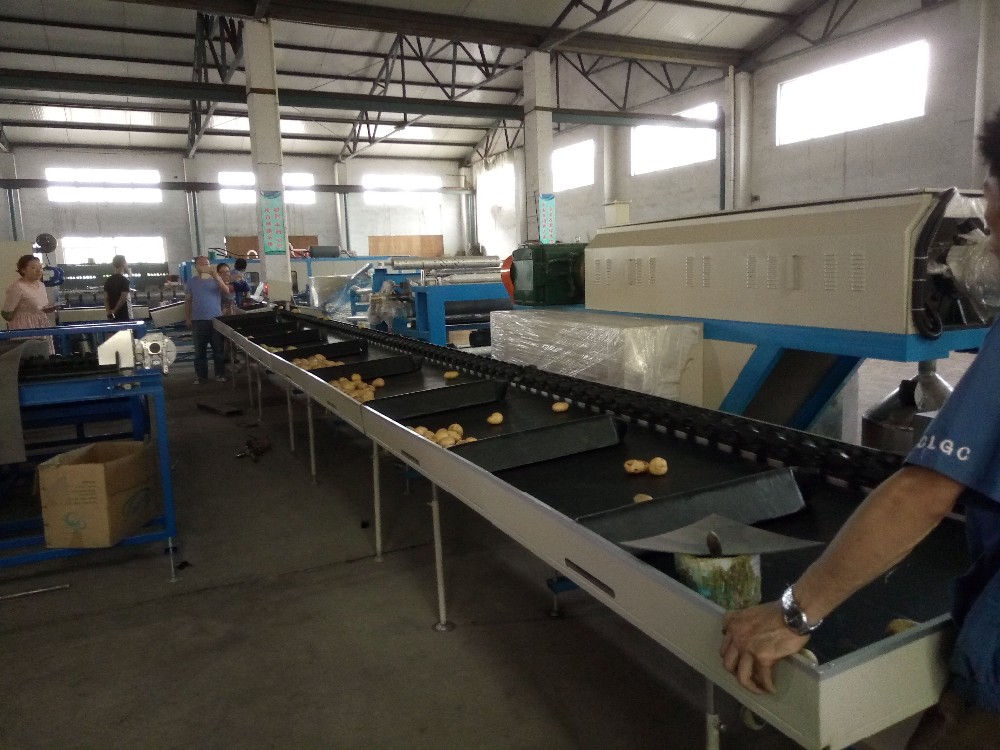

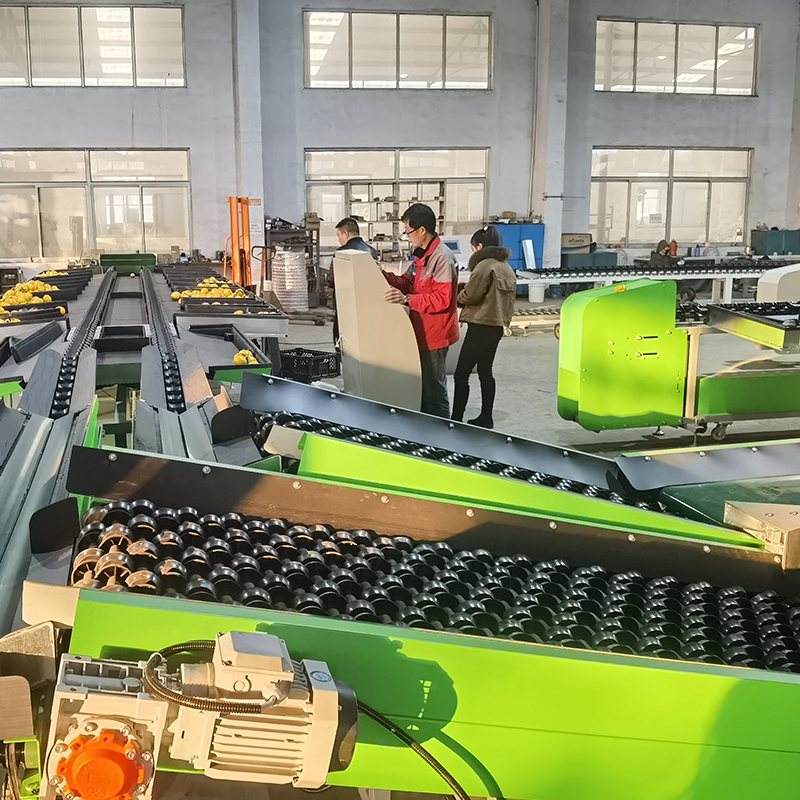

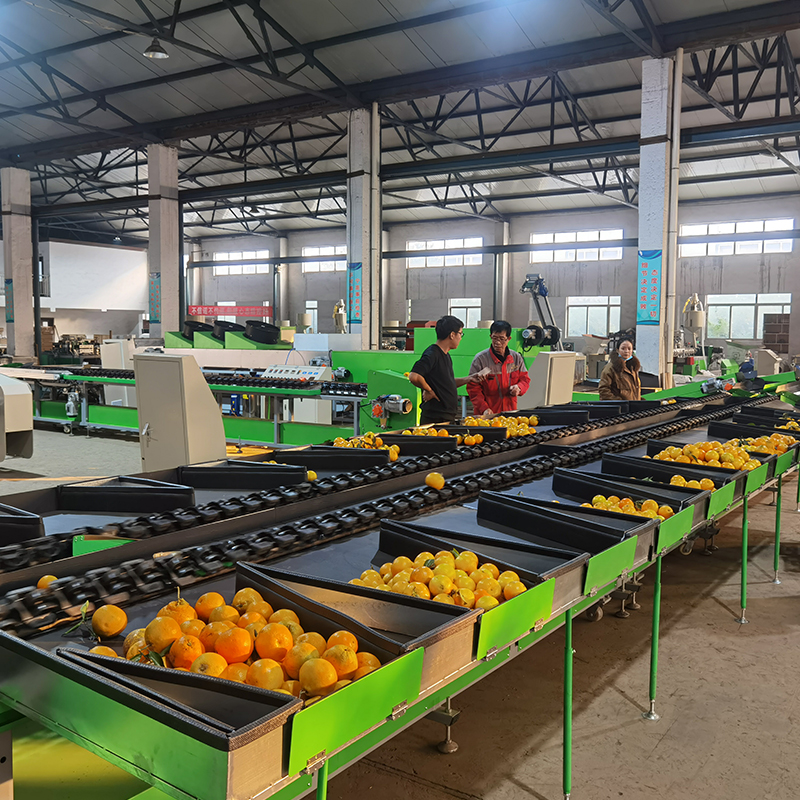

Name: Electronic sorting machine
Structure: Siemens color touch screen display, PLC, Weighing module, TOLEDO Weighing sensor.

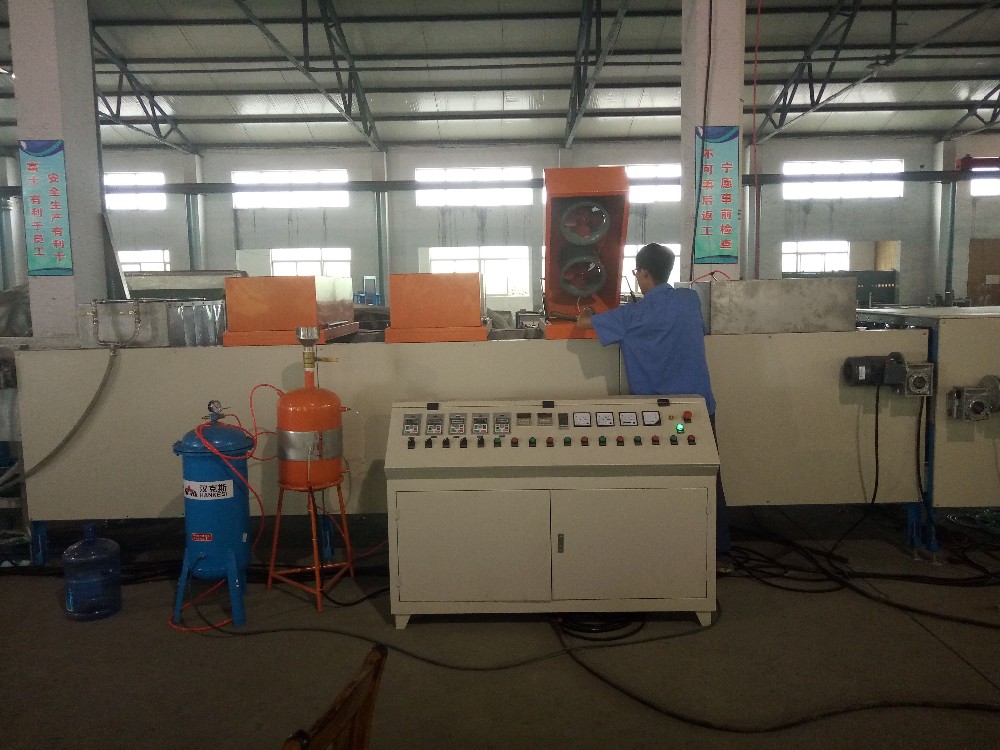

Longkou Fushi Packing Machinery CO.,LTD is founded in 1994 andd specialized in PS/PE foam sheet extrusion machine/PE foam tube/rod machine,PE foam net machinePS good container production line,vacuum forming machine, XPS foam board extrusion line,knotless net extrusionline,PE cap liner foam machine and all kinds of plastic processing machine for many years. All of our productswith high quality are widly used in all walks of life.
After decades of development, we have accumulated rich experience in research and development, production, and sales, and our market share is rapidly expanding. Our products are exported to various parts of the world and over 100 countries.
1) We are one of the leading manufacturers of packing maaterials and related machinery.
2) Our company found in 1994, have over 20 years with strong experience and advanced technique.
3) Best Quality & Best Service with Competitive price. 1 yearguarantee and lifetius maintenance.
4) We have CE certificate and ISO 9001 certificates.
5) We have Professional technical team, and will supply 24 hoursservice
The guarantee is 1 year. We'll pack enough spare parts foreach machine to support our gurantee, and if parts are damaged in guarantee, we'll send you new parts forfree by air. And our profeesional technical team can offer remote support to instruct and solveproblem for you.
The main parts we all use world famous brand, like Sieusns,Mitsubishi, ABB,Schneider etc.which are easy for custousr to buy. And sous custom-made parts, we'llsell you at cost price.
Our factory is located in Longkou city, Shandong province, you caan fly to Yantai Penglai International Airport. When you confirm the flight No. and tius, please tell uis then we will pick you up at Airport.
Our detail address is:
Langao Industrial Zone, Longkou City, Shandong Province,China.
Longkou Fushi Packing Machinery Co., LTD.
ZIP code: 265709.
You need to prepare workshop, cooling water system,power, compressor air.
