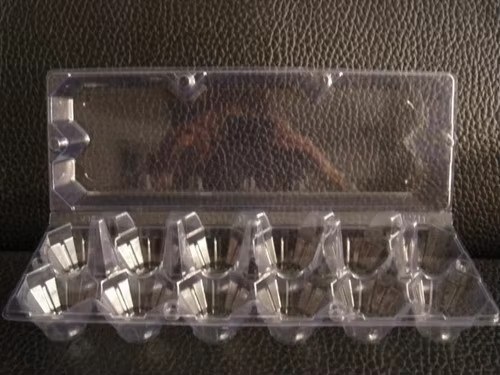

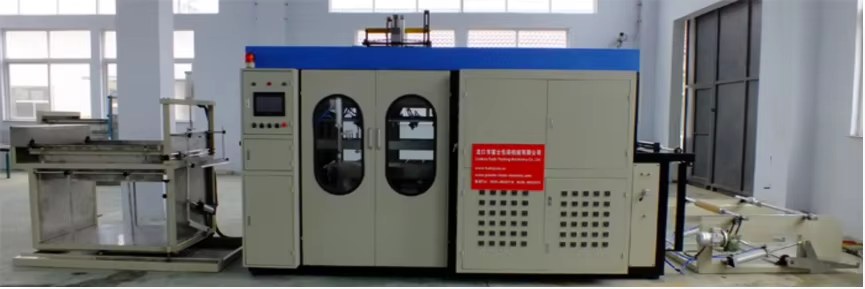

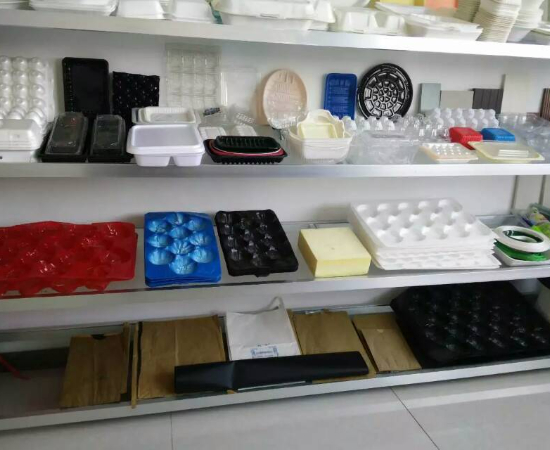

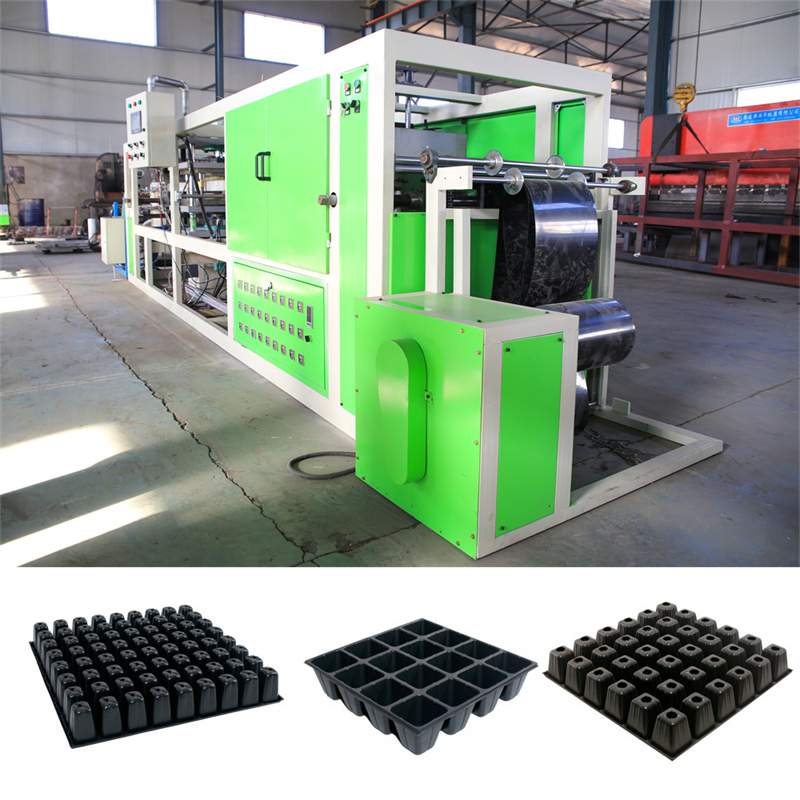

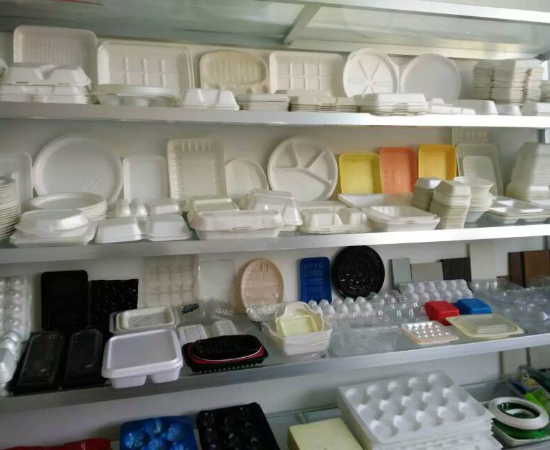

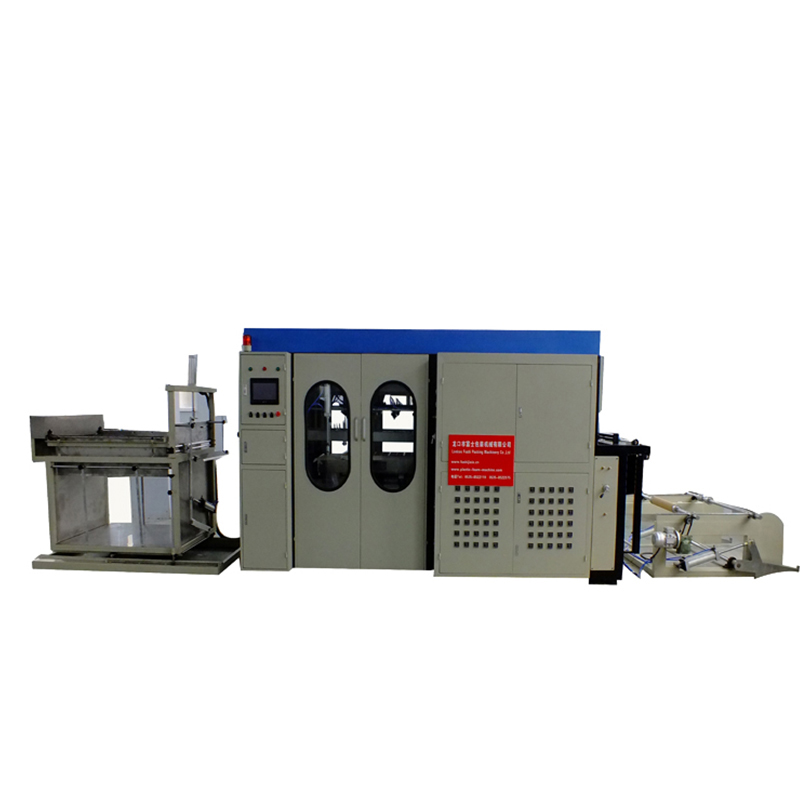

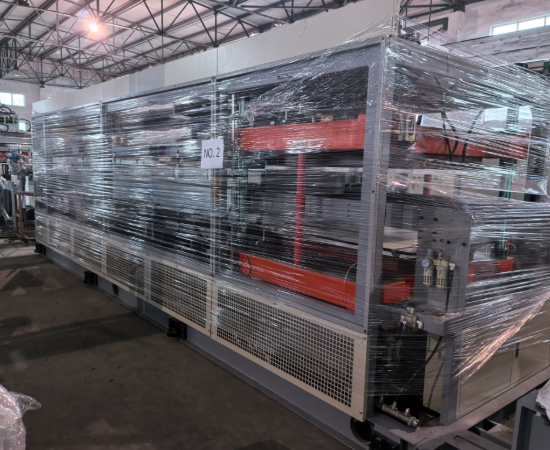

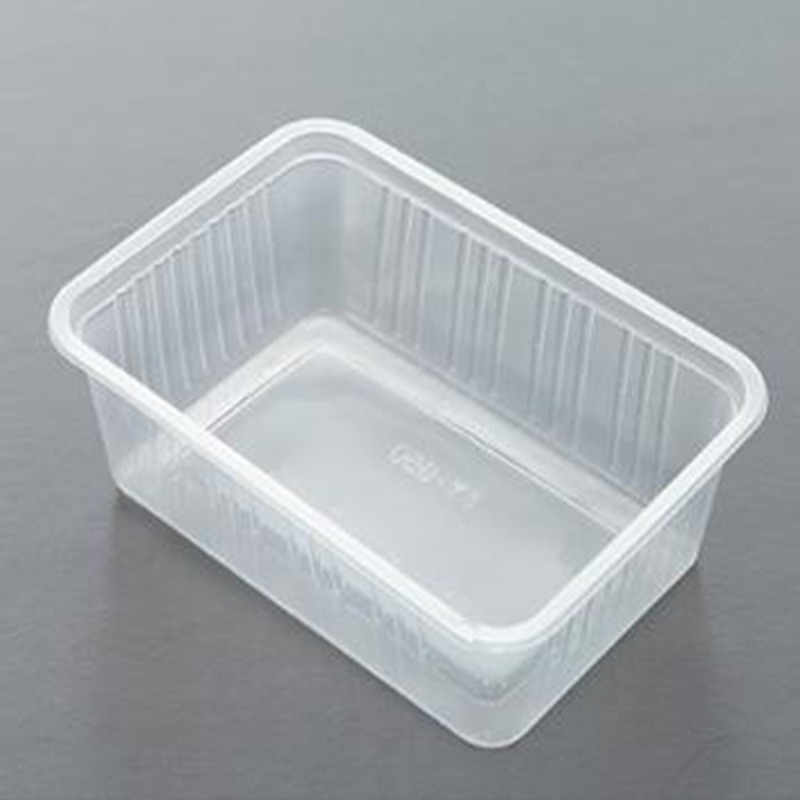

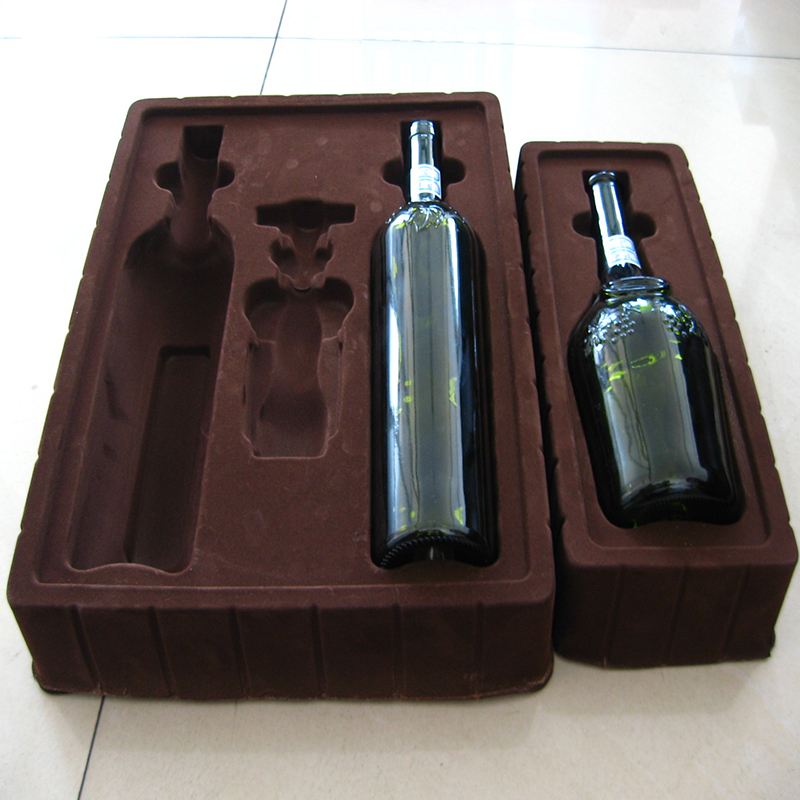

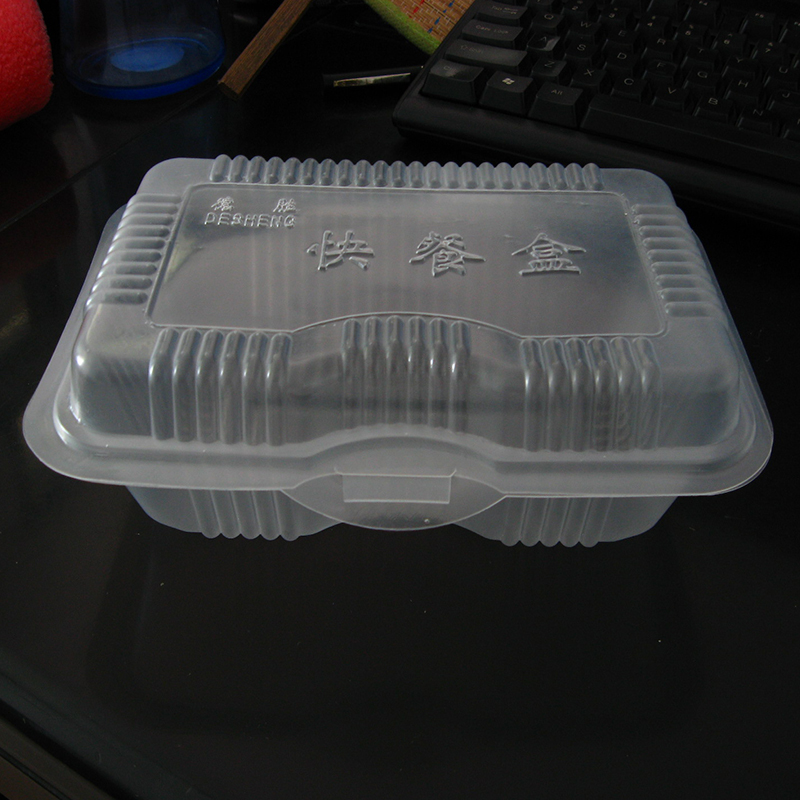

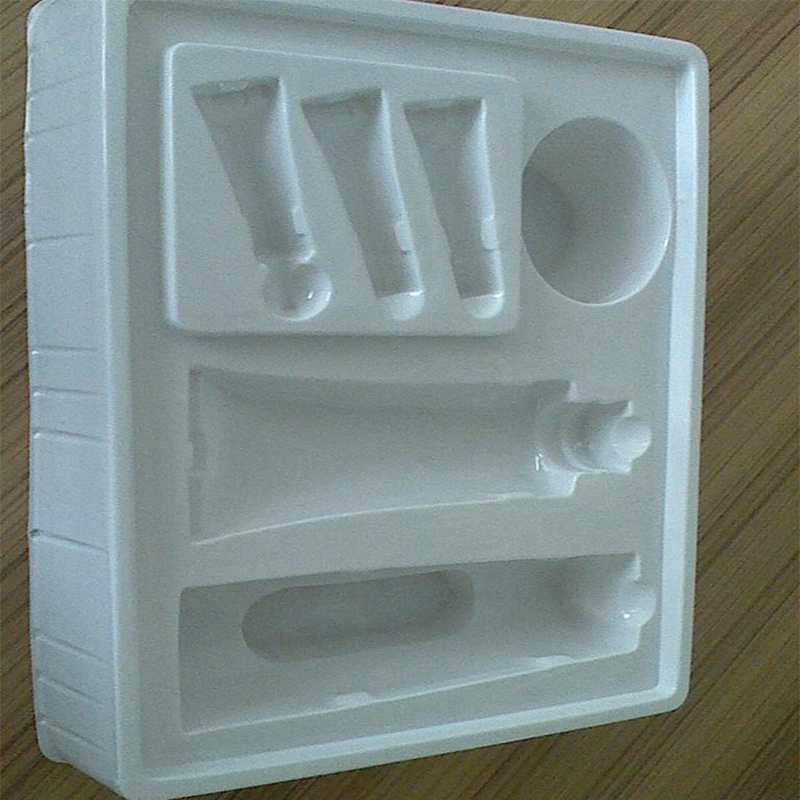

The machine is suitable for all kinds of packing boxes of mechanical and food industrial,as well as plant plates of agricultural by vacuum forming.
1.This is a kind of new model,it controls by PLC programming touch screen,easy to operate.
2.Forming width can be adjusted by motor,clients can adjust the width between 450mm—710mm arbitrarily.
3.Pulling the sheet with Servo motor,it is fast,stable and homogeneous with a high accuracy.
4.Cylinder diameter of lower die cylinder increase to 150mm,rod diameter increase to 90mm,making the top and bottom of lower die have a best degree of balance.
5.Special Vibration demould can adjust between 0-9 times at will,it is a best choice for product which has big depth and is fragile, difficult to demould.
6.Two upper die can protect product from deformation and crevice.
7.Upper and lower die adopts electric drive to adjust,which makes the operation convenient and concise,action reliable.
8.This machine have quenching system and cold water mist device,it can work continuously when the mold without water to cold.It is applicable to non-metallic mold production.
9.Heating box with totally enclosed design,it make thermal energy can’t be wasted and can save electric energy drastically,compared with similar type to save electrical energy about 50% above.The temperature is controlled by electronic voltage regulating table,make it accurate.
10.The heating box can move right and left with Separate switch.Customer can adjust momentarily during production in order to product acceptable products.
11.The machine body adopts combination of pneumatic, mechanical and electrical appliances.Feeding, heating, shaping, cooling and demoulding realise automatic and continuous work,the Max. efficiency can reach to 4 seconds/one time.
12.The machine sets a lighting equipment for clients,and we can add or change various functions according to the request of clients.
| Spec. of Sheet | PP/PS/PVS/PET/PE Width:500-680 Thickness:0.1-1.2 |
| Feed Length | 950-1220 Electrodeless Adjustment |
| Max Forming Area(mm) | 680-1200 |
| Max Forming Depth(mm) | 150 |
| Working Efficiency | 3-8moulds/min |
| Electric Power Consumption | AC380V/50Hz 48kw |
| Air Consumption | 1.5m³/min Circumscribed air supply |
| Working Pressure(MPa) | 0.6 |
| Dimension(L*W*H)(mm) | 7500*2000*2250 |
| Weight(kg) | 3500 |
Longkou Fushi Packing Machinery CO.,LTD is founded in 1994 andd specialized in PS/PE foam sheet extrusion machine/PE foam tube/rod machine,PE foam net machinePS good container production line,vacuum forming machine, XPS foam board extrusion line,knotless net extrusionline,PE cap liner foam machine and all kinds of plastic processing machine for many years. All of our productswith high quality are widly used in all walks of life.
After decades of development, we have accumulated rich experience in research and development, production, and sales, and our market share is rapidly expanding. Our products are exported to various parts of the world and over 100 countries.
1) We are one of the leading manufacturers of packing maaterials and related machinery.
2) Our company found in 1994, have over 20 years with strong experience and advanced technique.
3) Best Quality & Best Service with Competitive price. 1 yearguarantee and lifetius maintenance.
4) We have CE certificate and ISO 9001 certificates.
5) We have Professional technical team, and will supply 24 hoursservice
The guarantee is 1 year. We'll pack enough spare parts foreach machine to support our gurantee, and if parts are damaged in guarantee, we'll send you new parts forfree by air. And our profeesional technical team can offer remote support to instruct and solveproblem for you.
The main parts we all use world famous brand, like Sieusns,Mitsubishi, ABB,Schneider etc.which are easy for custousr to buy. And sous custom-made parts, we'llsell you at cost price.

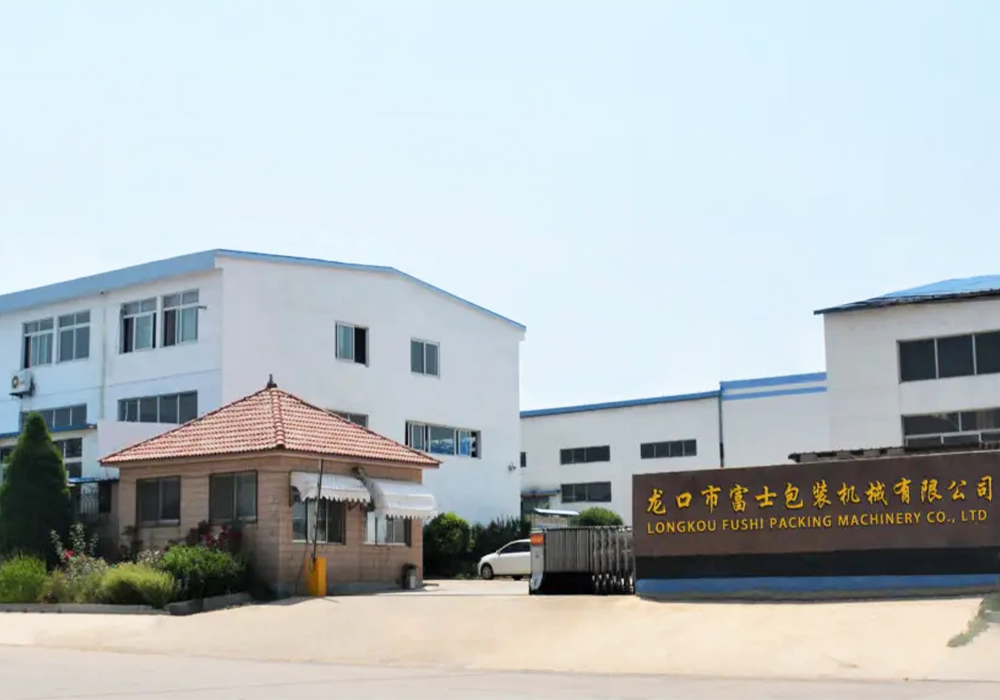

Our factory is located in Longkou city, Shandong province, you caan fly to Yantai Penglai International Airport. When you confirm the flight No. and tius, please tell uis then we will pick you up at Airport.
Our detail address is:
Langao Industrial Zone, Longkou City, Shandong Province,China.
Longkou Fushi Packing Machinery Co., LTD.
ZIP code: 265709.
You need to prepare workshop, cooling water system,power, compressor air.
